Specifications
  • Body Dimensions
  • Length2046 mm
  • Width737 mm
  • Height1116 mm
  • Wheel base1285 mm
  • Ground clearance162 mm
  • Kerb weight113 kg
  • Seat Length651 mm
  • Seat Height791 mm
  • Fuel Tank Capacity10.5 L
  • Engine
  • Type4 Stroke, SI, BS-VI Engine
  • Displacement123.94cc
  • Max Engine Output
  • Max Torque
  • Fuel SystemPGM-FI
  • Bore X Stroke50.0 X 63.121 mm
  • Compression Ratio10.0:1
  • Starting MethodSelf/Kick

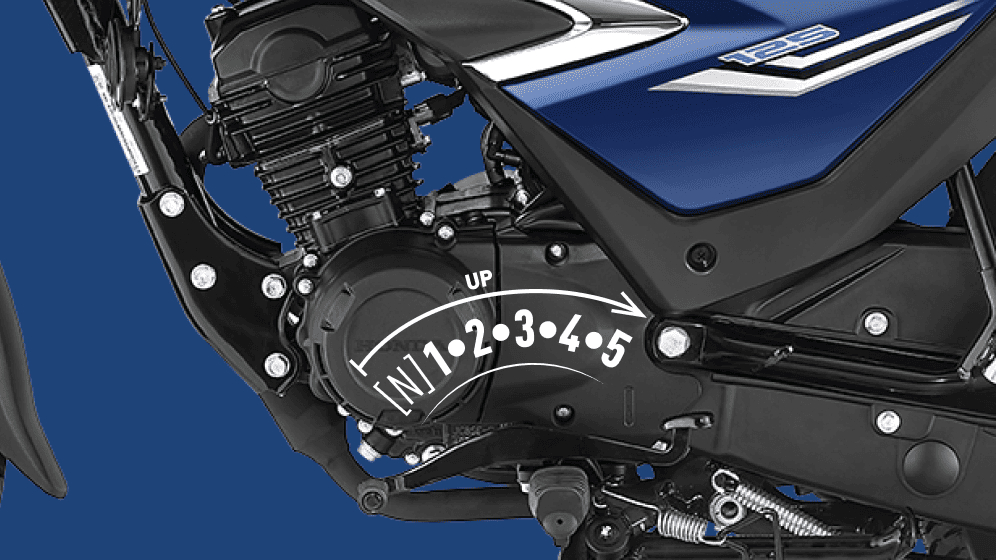

  • Transmission
  • Clutch TypeMultiplate Wet Clutch
  • No. of Gears5
  • Tyres & Brakes
  • Tyre Size & Type (Front)80/100-18 M/C 47P, Tubeless
  • Tyre Size & Type (Rear)80/100-18 M/C 54P, Tubeless
  • Brake Type & Size (Front)Disc-240 mm, Drum-130 mm
  • Brake Type & Size (Rear)Drum-130 mm
  • Frame & Suspension
  • Frame TypeDiamond Type
  • Front SuspensionTelescopic
  • Rear SuspensionHydraulic Type
  • Electricals
  • Battery12V,4.0Ah
  • Head lampHalogen Bulb, DC

+The technical specifications and design of the vehicle may vary according to the requirements and conditions without any notice. Shine meets Bharat stage VI norms. Accessories shown in the picture are not part of standard equipment.
